Back to Magnetic Building System



Airfield Models (http://www.airfieldmodels.com/)Medium Magnetic Fixture System II Set

$179.00 + Shipping.  Florida residents add 6.5% sales tax.

This set is discounted an additional 5% at checkout.

This set includes twenty-two fixtures in five sizes.  The set builds model aircraft sizes from 1/2A to Quarter-Scale and marginally larger models.  This is the set for the builder who builds the largest models that can comfortably fit into a hatch-back passenger vehicle with the seats folded down but doesn't have the models crammed in so tightly he's driving around with his head supporting part of a wing and his elbow resting on the fin.

So generally up to 1.60 size models are very comfortably built with this set.  If 1.60 size models fall into the middle of the range you build then consider the Standard Fixture Set instead.



Listed price is 5% off from purchasing items separately.  Additional discounts apply at checkout.

The drop-down list below has the option to add 20, 50 or 100 magnets to your order.

20 Magnets + $24.00
50 Magnets + $55.00
100 Magnets + $90.00

Due to customer requests there is now an option to purchase this set without magnets and magnet-mounting hardware.  Please be awa

Face Clamps are back in stock.  Contact me if you would like to add to your order.

Set Contents:

Medium Magnetic Fixture System II Set

Quantity

Item

6

1-1/2" Birch Plywood Fixture

6

2-1/2" Birch Plywood Fixture

4

3-1/2" Birch Plywood Fixture

4

5-1/2" Birch Plywood Fixture

2

7-1/2" Birch Plywood Fixture

92

Magnet Assembly w/Steel Poles

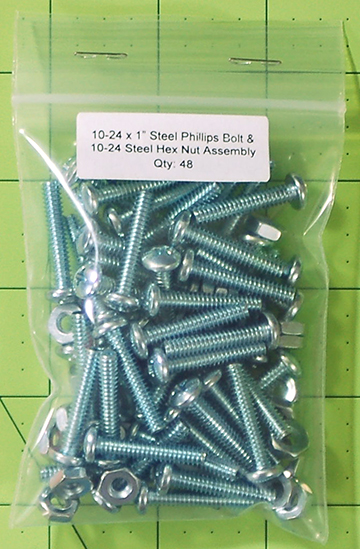

48

10-24 x 1" Steel Phillips Bolt w/Hex Nut

2

10-24 x 2-1/2" Steel Phillips Bolt

4 10-24 x 1-5/8" Steel Phillips Bolt

6

Hardwood Vertical Press

6

Hardwood Clamp Pad

6

10-24 x 1-5/8" Black Oxide Hex Head Steel Bolt

12

6-32 x 5/8" Black Oxide Steel Socket Cap Bolt

24 #6 Black Oxide Steel Flat Washer

12

6-32 Black Oxide Steel Hex Nut

1

7/64" Hex Key

1

Instructions and Notes

Set contains 34 hand-made wood parts.  Please note that hardwood pieces may be a different species than shown here.  I use only quality hardwoods such as maple, cherry (shown), walnut, etc.  Vertical Presses and Clamp Pads in your set will always be made from the same species of wood.

(6) 1-1/2" Fixture. (6) 2-1/2" Fixture. (4) 3-1/2" Fixture. (4) 5-1/2" Fixture.

(2) 7-1/2" Fixture.

(6) Vertical Press Assembly w/Clamp Pad and hardware.

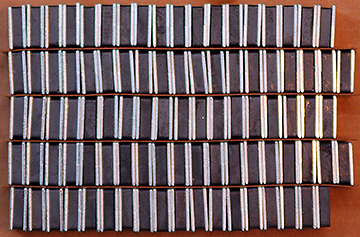

(92) Latch Magnet Assembly.

Magnet mounting hardware.

(4) 10-24 x 1-5/8" bolts for Brute Press conversions. (2) 10-24 x 2-1/2" bolts for Monster Press conversions.



7/64 Hex Key.

Current special includes one free sanding block faced with high quality Norton 220 grit sandpaper on one side and 180 grit sandpaper on the other side.
