Airfield Models (http://www.airfieldmodels.com/)New Large Magnetic Fixture System II Set

$298.25 + Shipping.  Florida residents add 6.5% sales tax.

This set is discounted an additional 7% at checkout.

This set includes twenty-six fixtures in five sizes plus four five inch fixture extensions.  This set will build just about anything.  Many customers came back soon after purchasing this set and bought more Vertical Press assemblies so I added four more to the set going from eight to twelve which is something the set probably should have had all along.

The new 5" Fixture Extensions for the 7-1/2" fixtures add three new sizes to the system - 8-1/2", 10-1/2" and 12-1/2" as they allow height increases from 7-1/2" to 12-1/2" in one-inch increments.  Each extension includes a pair of longer bolts to attach a Vertical press at any location where an extension and fixture overlap.  You get a lot of hardware with this set.

As of 4-1-2017 - Amazon Store is Closed!

Amazon has terminated the service I was using to sell my Fixture systems.  Their new service does not begin to meet my needs.  It's a lot of work and not worth the effort to migrate to the new service.

At this time I have a professional constructing an online store for me.  The completion date is unknown but it should be up and running in just a few weeks.

Until then I can use the new Amazon service for individual orders.  If you would like to purchase one of my stock fixture sets or a custom fixture set then email me the details of what you want and I can create an invoice for you to pay through Amazon.  If you don't know what you want then I'm happy to help with that as well.

Email: webmaster@airfieldmodels.com



Listed price is 5% off from purchasing items separately.  Additional discounts apply at checkout.

The drop-down list below has the option to add 20, 50 or 100 magnets to your order.

20 Magnets + $24.00
50 Magnets + $55.00
100 Magnets + $90.00

Due to customer requests there is now an option to purchase this set without magnets and magnet-mounting hardware.  Please be aware that these fixtures are designed for one specific magnet and are not guaranteed to work with any other.

Face Clamps are back in stock.  Contact me if you would like to add to your order.

Set Contents:

New Large Magnetic Fixture System II Set

Quantity

Item

6

1-1/2" Birch Plywood Fixture

4

2-1/2" Birch Plywood Fixture

4

3-1/2" Birch Plywood Fixture

4

5-1/2" Birch Plywood Fixture

8

7-1/2" Birch Plywood Fixture

4 5" Fixture Extension

120

Magnet Assembly w/Steel Poles

62

10-24 x 1" Steel Phillips Bolt w/Hex Nut

2

10-24 x 2-1/2" Steel Phillips Bolt

4 10-24 x 1-5/8" Steel Phillips Bolt

12

Hardwood Vertical Press

12

Hardwood Clamp Pad

8

10-24 x 1-5/8" Black Oxide Hex Head Steel Bolt

*24 + 16

6-32 x 5/8" Black Oxide Steel Socket Cap Bolt

*48 + 32

#6 Black Oxide Steel Flat Washer

*24 + 16

6-32 Black Oxide Steel Hex Nut

8

6-32 x 3/4" Black Oxide Steel Socket Cap Bolt

1

7/64" Hex Key

1 Instructions and Notes

* The first number is the quantity for the Vertical Presses and the second number is the quantity for the 5" Fixture Extensions.  Vertical Press hardware and Fixture Extension hardware is bagged separately.

Set contains 54 hand-made wood parts.  Please note that hardwood pieces may be a different species than shown here.  I use only quality hardwoods such as maple, cherry (shown), walnut, etc.  Vertical Presses and Clamp Pads in your set will always be made from the same species of wood.

(6) 1-1/2" Fixture. (4) 2-1/2" Fixture. (4) 3-1/2" Fixture. (4) 5-1/2" Fixture.

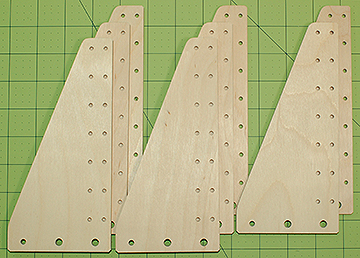

(8) 7-1/2" Fixture.

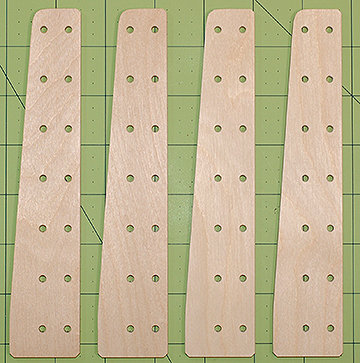

(4) 5" Fixture Extension.

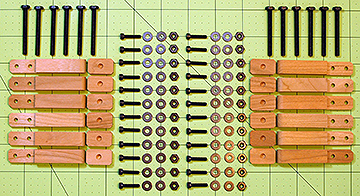

(12) Vertical Press Assembly w/Clamp Pad and hardware.

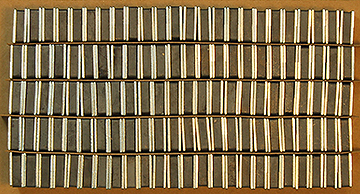

(120) Latch Magnet Assembly.

Fixture Extension Mounting Hardware.  What you see here x 4

(8) 6-32 x 3/4" Socket Cap Bolts.  What you see here x 2.  Used to mount Vertical Presses where Fixture Extensions overlap Fixtures.

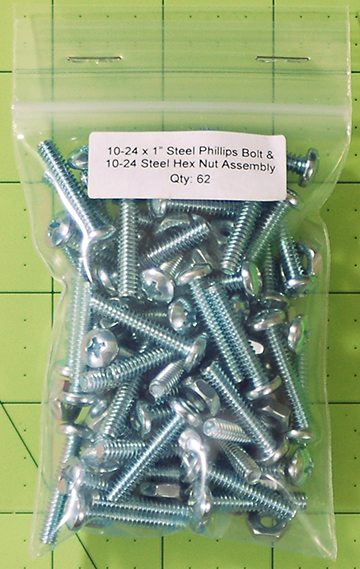

Magnet mounting hardware.

(4) 10-24 x 1-5/8" bolts for Brute Press conversions.



(2) 10-24 x 2-1/2" bolts for Monster Press conversions.

7/64 Hex Key.

Current special includes one free sanding block faced with high quality Norton 220 grit sandpaper on one side and 180 grit sandpaper on the other side.
